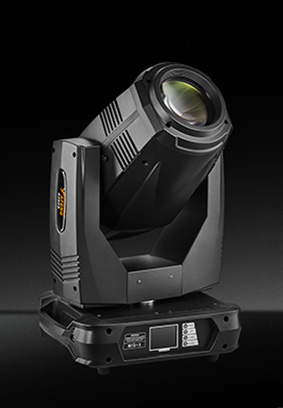

YF-8380S

Input voltage
100-240V AC / 50-60Hz

rated power
5 00W@220V


Bulb specification
Philip 17R 350W

Color temperature
7500K

Rated life
2000H

Yancolor
1 color plate 1 3 colors + white light can be rotated in two directions, rainbow water effect, double half color effect.

Figurecase:
2 pattern plates

a fixed pattern piece
1 5 beam patterns + white light, with bidirectional rotating water, variable speed jitter effect.

a glass pattern plate
9 glass patterns, effective pattern diameter 12mm. Pluggable replacement, large diameter pattern is more convenient to do your own LOGO pattern, with two-way rotating water, shifting jitter effect.

edgemirror
2 prism discs 6 side prism + 12 prisms, can be rotated in both directions, and the prisms can overlap. There are three different prism effects (long, round, oval). Can be used together with atomization, colorful, pattern, color film and other functions.

Fog of
1 atomizing disk 0-100% linear atomization

Down temperature
Independent cooling channel, instantly dropped to 3200K at 7200K , used for surface light


Seven color
1 th disc colorful 0-100% linear 288, the company selection colorful effect. Suitable for more occasions.


frequencyflash
2 stroboscopic, 0.5-14 times / sec, with different effects of stroboscopic macro function. When the light is closed, the bulb is reduced to half power to extend the life of the bulb.

TuneLight
0-100% linear dimming

Tunefocal
High-precision multi-group cemented lens, DMX linear focusing pattern beam angle ( 0- 45 °)


Rotation angle
Horizontal 540 °, vertical 270 °, with automatic retrieval and return function, accurate positioning. Use three phases to vigorously mute the motor.

control method
International standard DMX512 signal, 3- core, 5- core DMX512 interface, 24 channel control

Other functions
Display the lamp bulb usage time, the console open defoam function, Chinese and English two-way display, 2.8 -inch touch color screen plus buttons.

Protection level
High temperature resistant flame retardant engineering plastics, anti-aging, anti-open flame. IP20


Cold but
All use high-end axial fans to ensure good ventilation and heat dissipation

Net weight
19.5 KG

hairweight
21.5KG

Dimensions
29*39*65 ( CM )

Package dimensions
59 × 48 × 48CM
