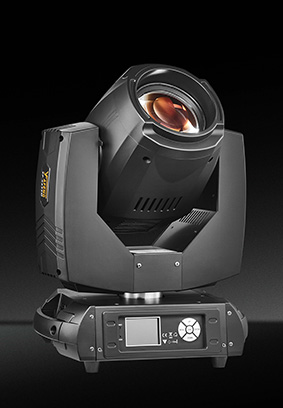

YF-6262M

The input voltage

100-240 - v AC / 50 to 60 hz

Rated power
@ 220 v, 400 w

The light bulb specifications
YODN 9 r 230 w

Color temperature
7500 k.

Rated life
1500 h.

color
1 color disc 14 colors + white light can be bidirectional variable rotation, rainbow water effect, double half color effect.

Design
1 design disk

A fixed pattern piece
17 beam patterns + white light, with two-way rotating water, variable speed jitter effect.

A prism
1 prism disc 1 double-layer 8 prism +16 prism, bidirectional variable rotation.

stroboscopic
0.5-14 times per second, with different effects of strobe macro function. When the light is off, the bulb is reduced to half power to extend the service life of the bulb.

The dimmer
0-100% linear dimming

focusing
Multiple sets of agglutination lens for high precision, DMX linear pattern focusing beam Angle (0 to 5 °)

Rotation Angle
Level 540 °, 270 ° vertically, with functions of automatic retrieval return, accurate positioning.

The control mode
International standard DMX512 signal, 3 core, DMX512 interface, 16 channel control

Other features
Display lamp bulb use time, control console on and off bubble function, Chinese and English two-way display, 2.8 inch touch color screen plus button.

Protection grade
High temperature resistant and flame retardant engineering plastics, anti - aging, anti - flame. IP20

cooling
All high-end axial fans ensure good ventilation and heat dissipation

The net weight
16.5 KG

Gross weight
17.5 KG

Overall dimensions
27 *  38 *51 (CM)

Packing size
53.5 * 41.5 * 45 CM
