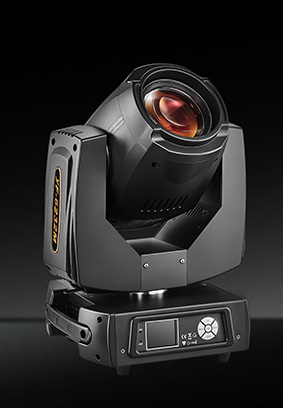

YF-6232M

The input voltage

100-240 - v AC / 50 to 60 hz

Rated power

@ 220 v, 400 w

The light bulb specifications

YODN7R 230 w

Color temperature

7500 k.

Rated life

1500 h.

color

1 color disc 14 colors + white light can be bidirectional variable rotation, rainbow water effect, double half color effect.

Design

1 design disk

A fixed pattern piece

17 beam patterns + white light, with two-way rotating water, variable speed jitter effect. Pattern with prism can do simple pattern lamp effect.

A prism

1 prism disc 1 double layer 6 prism +16 prism, can be bidirectional variable rotation, can cooperate with atomization, pattern, color plate and other functions.

atomization

1 atomizing disc 0-100% linear atomization

stroboscopic

2 stroboscopic slides, 0.5-14 times per second, with different effects of stroboscopic function. When the light is off, the bulb is reduced to half power to extend the service life of the bulb.

The dimme

r0-100% linear dimming

focusing

Multiple sets of agglutination lens for high precision, DMX linear pattern focusing beam Angle (0 to 5 °)

Rotation Angle

Level 540 °, 270 ° vertically, with functions of automatic retrieval return, accurate positioning.

The control mode

International standard DMX512 signal, 3 core, DMX512 interface, 16 channel control

Other features

Display lamp bulb use time, control console on and off bubble function, Chinese and English two-way display, 2.8 inch touch color screen plus button

Protection grade

High temperature resistant and flame retardant engineering plastics, anti - aging, anti - flame. IP20

cooling

All high-end axial fans ensure good ventilation and heat dissipation

The net weight

16.5 KG

Gross weight

19.5 KG

Overall dimensions

27 * 38* 51 (CM)

Packing size

53.5 * 41.5 * 45 CM
