product name

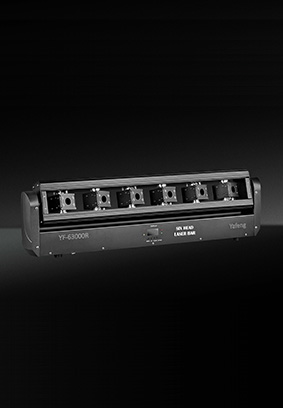

3W 6- axis rocking laser rain
Rated voltage
AC100V~230V 50~60Hz ± 10%
rated power
150W
Laser source
Semiconductor pump laser
Laser modulation
TTL modulation
Laser wavelength
638nm
Laser power
3W ( red light 500mW*6)
Laser color
red
Laser system
Motor system, single point light controllable
Y- axis rocking angle Y- axis swing is close to 180 °, X- axis can swing about 140 °
Laser effect
Laser array, horse racing, strobe, light and dark effects combinations
Control mode
DMX512, voice control, self-propelled, master-slave mode
Control channel
17 channels
Use environment
indoor
Applicable place
Large shows, light shows, bars, etc.
Operating temperature
-30 ° C~60 ° C
Lamp size
91*13*18CM , carton packaging
Lamp weight
About 11KG
The laser swing angle is about 180 degrees on the Y axis , and the X axis can be swung by 140 °. The laser has a dot matrix, horse racing, stroboscopic, bright and dark effects. Can be customized single green, single blue.
