product name

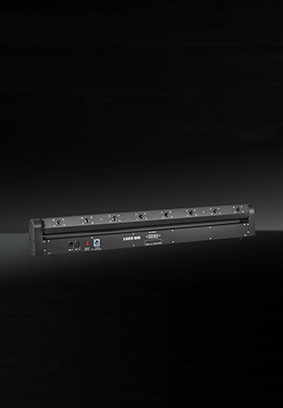

2400MW 8 head laser swing rain - red green blue
Rated voltage
AC100V~230V 50~60Hz ± 10%
rated power
150W
Laser source
Semiconductor pump laser
Laser modulation
TTL modulation
Laser wavelength
520nm & 638nm & 450nm
Laser power
2400mW ( green light 100mW*4+ red light 500mw*2+ blue light 500mw*2)
Laser color
RGB
Laser system
Motor system, single point light controllableY- axis rocking angle swings close to 180 degrees
Laser effect
Laser array, horse racing, strobe, light and dark effects combinations
Control mode
DMX512, voice control, self-propelled, master-slave mode
Control channel
15 channels
Use environment
indoor
Applicable place
Large shows, light shows, bars, etc.
Operating temperature
-30 ° C~60 ° C
Lamp size
107*9*17CM , carton packaging
Lamp weight
About 9KG
Can do it alone
RGB.
4 green 2 red 2 blue light, 8 head total laser power 2400mW , laser swing angle of about 180 degrees, laser with dot matrix, horse racing , stroboscopic, bright and dark effects
