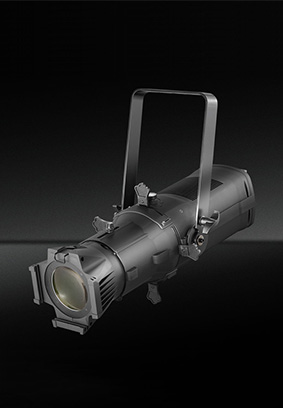

YF-E200

型号:

功能介绍:

  • 技术参数
  • 结构示意图
  • 光照表
  • 效果展示

light source

Cool white, warm white, 2 in 1 3 in 1 4 in 1



Lamp power

150W/180W/200W /300W



Color rendering index (CRI)

Ra  90


colour

RGB 3in1 (180w), 2in1 (200w/), RGBW 4in1 (200w/300w), cool white (300w/200w/150w), warm white (300w/200w/150w)


IC chip

Nichia


Led lamp beads

Japan West Rail City


Light source life

More than 50,000 hours



Rated voltage

AC100-240V 50-60Hz



Total power consumption

200W/250W/260W/390W



Beam angle

19 ° /26 ° /36 ° /50 ° ( optional )


Dimming

0~100% linear dimming



Strobe

1-25 times / sec



focal length

Can be adjusted manually



technology

High quality optical system, glass reflector


Body

PVC



Chassis color

black


Chassis features

Small size and light weight



Control System

DMX, self-propelled mode, master-slave mode


DMX channel

1/3CH ( monochrome ), 2/5CH (2 in 1), 3/7CH (RGB), 4/8 (RGBW)



Operating temperature

-30~40 °C
